When selecting a pool heater manifolds header, the goal is to find a component that offers reliable flow control, durability, and compatibility with your heater model. The Raypak 006731F Return Header stands out for its robust ASME-certified construction, making it ideal for high-pressure applications. Meanwhile, the Zodiac R0470800 offers an excellent replacement option for legacy Zodiac heaters, ensuring seamless compatibility. The main challenge lies in balancing quality, price, and fit—cheaper options may save money upfront but can compromise longevity or performance. Continue reading for a detailed comparison to help you make an informed choice.
Listen free for 30 days with Audible
Thousands of audiobooks and originals — cancel anytime.
Start your free trialAs an affiliate, we earn on qualifying purchases.
Complete the kit
Key Takeaways
- The best pool heater headers combine robust build quality with precise fit for specific heater models.
- High-pressure rated headers, like ASME-certified options, are ideal for commercial or heavy-duty residential use.
- Compatibility varies significantly across brands; always verify model-specific fit before purchase.
- Replacing headers with kits can simplify installation and ensure all seals and gaskets are up to date.
- Price often correlates with durability and pressure ratings—spend more if your system requires high-pressure tolerance.
| Raypak 006731F Return Header ASME CI |  | Best Overall for Durability and Safety | Product Dimensions: 1 x 1 x 1 inches | Item Weight: 1 pounds | Manufacturer: RAYPAK | VIEW ON AMAZON | See Our Full Breakdown |
| Zodiac R0470800 Inlet and Outlet Header Assembly Replacement for Select Zodiac Legacy Pool and Spa Heater |  | Best for Zodiac Systems and Easy Replacement | Product Dimensions: 18.5 x 12.2 x 10.7 inches | Item Weight: 8 pounds | Country of Origin: United States | VIEW ON AMAZON | See Our Full Breakdown |
| E-cowlboy Manifold Replacement Kit for Pool and Spa Heater Compatible with MasterTemp/Max-E-Therm 400 |  | Best for Versatile Replacement on Pentair Heaters | Product Dimensions: 9 x 9 x 6 inches | Item Weight: 6 pounds | Model Number: EC – 77707-0016 | VIEW ON AMAZON | See Our Full Breakdown |
| Pool Heater Manifold Parts for MasterTemp 175-400 and Sta-Rite Max-e-Therm |  | Best for Multi-Model Compatibility and Leak Prevention | Product Dimensions: 8.86 x 5.51 x 5.91 inches | Item Weight: 3.28 pounds | Material: High-temperature resistant rubber and plastic | VIEW ON AMAZON | See Our Full Breakdown |
| Replacement 77707-0120 Heater Manifold O-Ring Kit Compatible with Pentair |  | Best for Leak-Proof Sealing and Easy DIY Replacement | Brand: Aquatonics | Model: AQTNS02 | Part Number: AQTNS02 | VIEW ON AMAZON | See Our Full Breakdown |
| Pool Heater Manifold Assembly Kit for MasterTemp and Sta-Rite Max-E-Therm Heaters, 77707-0205, 77707-0206, 77707-0014, 77707-0015, 77707-0016, Black |  | Best Overall for Compatibility and Reliability | Compatibility: MasterTemp 175-400, Sta-Rite Max-E-Therm SR200, SR333, SR400 | Material: PTFE | Dimensions: 8.85 x 5.5 x 5.9 inches | VIEW ON AMAZON | See Our Full Breakdown |
| 206A – 407A Replacement Return Header with Seal & Flange Nut Kit for Raypak Pool Heaters |  | Best for Raypak Heater Owners on a Budget | Product Dimensions: 14.62 x 4.37 x 1.61 inches | Part Number: 206A – 407A, 015095F | Included Parts: Polymer Return Header, Header O-Ring, Drain Plug, Flange Nuts | VIEW ON AMAZON | See Our Full Breakdown |
| Pool Heater Manifold Assembly Replacement Kit for Pentair MasterTemp and Sta-Rite Max-e-Therm |  | Best for Precise Fit and Complete Kit | Product Dimensions: 2 x 1.98 x 1.99 inches | Item Weight: 3.32 pounds | Manufacturer: E-cowlboy | VIEW ON AMAZON | See Our Full Breakdown |
| Raypack 006730F Inlet/Outlet Header ASME-CI |  | Best for Standard Durability and Quality | Product Dimensions: 1 x 1 x 1 inches | Item Weight: 1 pound | Manufacturer: SCP Distributors LLC | VIEW ON AMAZON | See Our Full Breakdown |
| Raypak Avia Complete Inlet and Outlet Header Kit – 019049F |  | Best Complete Kit for Easy Installation | Product Dimensions: 12 x 12 x 7 inches | Item Weight: 5 pounds | Item Model Number: 019049F | VIEW ON AMAZON | See Our Full Breakdown |
| sixcow 77707-0016 Manifold Replacement Kit for Pool and Spa Heater |  | Best Compatibility and Ease of Installation | Product Dimensions: 9 x 9 x 6 inches | Item Weight: 6.14 pounds | Model Number: 77707-0016 | VIEW ON AMAZON | See Our Full Breakdown |
| Raypak 002451F Return Header Kit for 183-403 Bronze |  | Best for Specific Raypak Models | Product Dimensions: 1 x 1 x 1 inches | Item Weight: 5 pounds | Manufacturer: Raypak | VIEW ON AMAZON | See Our Full Breakdown |
| E-cowlboy Manifold Replacement Kit for Pool and Spa Heaters |  | Best for Multi-Model Compatibility and Complete Replacement | Product Dimensions: 2 x 1.98 x 1.99 inches | Item Weight: 6.05 pounds | Model Number: 77707-0016 | VIEW ON AMAZON | See Our Full Breakdown |
| Raypak 011595F Inlet and Outlet Header |  | Best for Specific System Replacement | Product Dimensions: 8.7 x 6.9 x 6.7 inches | Item Weight: 5 pounds | Model Number: 011595F | VIEW ON AMAZON | See Our Full Breakdown |
| Raypack 006707F Return Header with Gaskets |  | Best for High-Quality Replacement and Gasket Inclusion | Product Dimensions: 1 x 1 x 1 inches | Item Weight: 1 pound | Model Number: 006707F | VIEW ON AMAZON | See Our Full Breakdown |
| pool heater manifolds header | Product Dimensions | Item Weight | Model Number |
|---|---|---|---|
| Raypak 006731F Return Header A | 1 x 1 x 1 inches | 1 pounds | — |
| Zodiac R0470800 Inlet and Outl | 18.5 x 12.2 x 10.7 inches | 8 pounds | — |
| E-cowlboy Manifold Replacement | 9 x 9 x 6 inches | 6 pounds | EC – 77707-0016 |
| Pool Heater Manifold Parts for | 8.86 x 5.51 x 5.91 inches | 3.28 pounds | — |
| Replacement 77707-0120 Heater | — | — | — |
| Pool Heater Manifold Assembly | — | 2.89 pounds | — |
| 206A | 14.62 x 4.37 x 1.61 inches | — | — |
| Pool Heater Manifold Assembly | 2 x 1.98 x 1.99 inches | 3.32 pounds | 77707-0205 |
| Raypack 006730F Inlet/Outlet H | 1 x 1 x 1 inches | 1 pound | 006730F |
| Raypak Avia Complete Inlet and | 12 x 12 x 7 inches | 5 pounds | — |
| sixcow 77707-0016 Manifold Rep | 9 x 9 x 6 inches | 6.14 pounds | 77707-0016 |
| Raypak 002451F Return Header K | 1 x 1 x 1 inches | 5 pounds | 002451F |
| E-cowlboy Manifold Replacement | 2 x 1.98 x 1.99 inches | 6.05 pounds | 77707-0016 |
| Raypak 011595F Inlet and Outle | 8.7 x 6.9 x 6.7 inches | 5 pounds | 011595F |
| Raypack 006707F Return Header | 1 x 1 x 1 inches | 1 pound | 006707F |
More Details on Our Top Picks
Raypak 006731F Return Header ASME CI
The Raypak 006731F stands out for its robust construction made of durable iron, combined with ASME certification that guarantees safety and compliance for a wide range of pool and spa systems. Compared to the Zodiac R0470800, which is more suited to Zodiac-specific models, this header offers broader reliability in various setups. Its compact size makes it easy to fit into tight spaces, but the limited installation guidance could pose a challenge for DIY users. While it excels in safety and longevity, its specificity means it won’t suit every system without verification.
Pros:- Made of durable iron material for long-lasting performance
- ASME certified, ensuring safety and compliance
- Compact size suitable for various setups
- High customer satisfaction with 5-star reviews
Cons:- Limited information on installation instructions
- Specific to certain pool/spa systems, may not be universally compatible
Best for: Pool owners seeking a reliable, safety-certified return header compatible with multiple systems
Not ideal for: Homeowners with very specific or non-standard pool setups who need universal parts or detailed installation instructions
- Product Dimensions:1 x 1 x 1 inches
- Item Weight:1 pounds
- Manufacturer:RAYPAK
- Item Model Number:006731F
- Material:Iron
- Certification:ASME
Our verdict“This header is ideal for those prioritizing safety and durability in established pool systems but may require additional guidance for installation.”
Zodiac R0470800 Inlet and Outlet Header Assembly Replacement for Select Zodiac Legacy Pool and Spa Heater
The Zodiac R0470800 offers a straightforward replacement for Zodiac Legacy heaters, such as the LRZE and LRZM models, making it a reliable choice for Zodiac-specific repairs. Unlike the Raypak 006731F, which is more universal, this header is tailored for particular Zodiac units, simplifying the replacement process. Its US manufacturing quality assures durability, but its weight—8 pounds—might be a drawback for some DIY installers. Since it lacks detailed instructions, some users might need professional help.
Pros:- Compatible with multiple Zodiac Legacy heater models
- Made in the USA with quality standards
- Easy to replace for ongoing maintenance
- Reliable performance for outdoor systems
Cons:- Limited to specific Zodiac models
- No detailed installation instructions included
- Relatively heavy for casual handling
Best for: Owners of Zodiac Legacy heaters needing a direct, dependable replacement part
Not ideal for: Users with non-Zodiac systems or those seeking a universal header, as this is model-specific
- Product Dimensions:18.5 x 12.2 x 10.7 inches
- Item Weight:8 pounds
- Country of Origin:United States
- Package Dimensions:45.72 L x 30.988 W x 26.67 H centimeters
- Package Weight:8.0 Pounds
Our verdict“This header is best suited for Zodiac heater owners seeking a precise, durable replacement without the need for universal compatibility.”

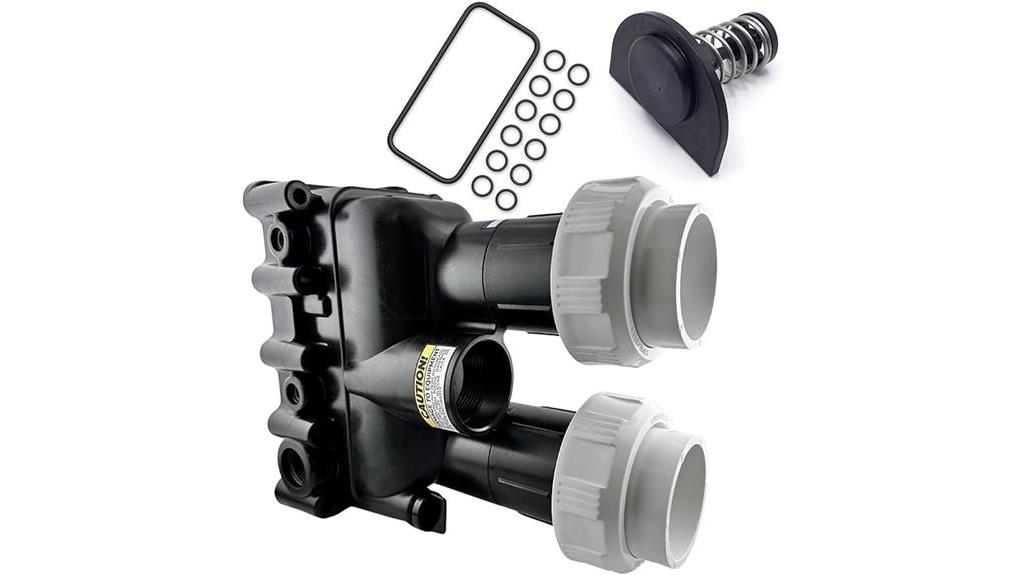

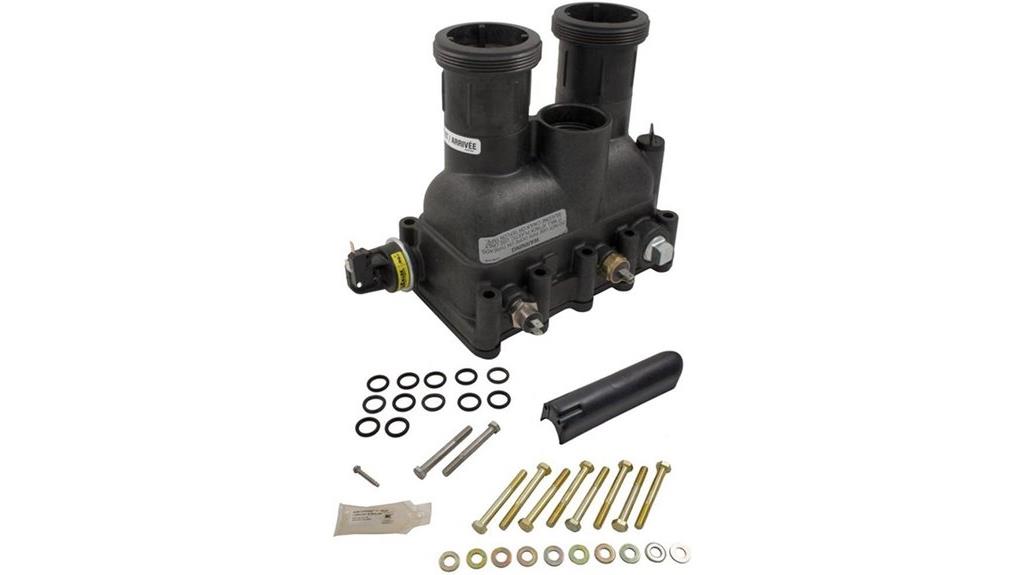

E-cowlboy Manifold Replacement Kit for Pool and Spa Heater Compatible with MasterTemp/Max-E-Therm 400
The E-cowlboy manifold kit makes a compelling choice for those maintaining Pentair Max-E-Therm and Mastertemp 400 models, offering a complete set of parts for straightforward installation. Compared to the Pool Heater Manifold Parts for MasterTemp 175-400, this kit provides higher versatility with specific high-quality components. Its corrosion-resistant materials promise long-term reliability, but the installation complexity means this isn’t ideal for beginners without professional help. Price details are unavailable, which could influence decision-making.
Pros:- Compatible with multiple Pentair heater models
- Made from durable, corrosion-resistant materials
- Includes all necessary parts for installation
- Designed for long-lasting performance
Cons:- Installation may require technical knowledge or professional help
- Limited to specific heater models
- Price information not provided
Best for: DIY homeowners or technicians familiar with Pentair heater systems needing a comprehensive repair kit
Not ideal for: Novice users or those with different heater brands, as this is model-specific and may require technical skills
- Product Dimensions:9 x 9 x 6 inches
- Item Weight:6 pounds
- Model Number:EC – 77707-0016
- ASIN:B0GTFH77KQ
- Material:High-quality durable components
- Compatibility:Max-E-Therm and Mastertemp 400
Our verdict“This kit is best suited for experienced users needing a reliable, all-in-one solution for Pentair heater maintenance.”

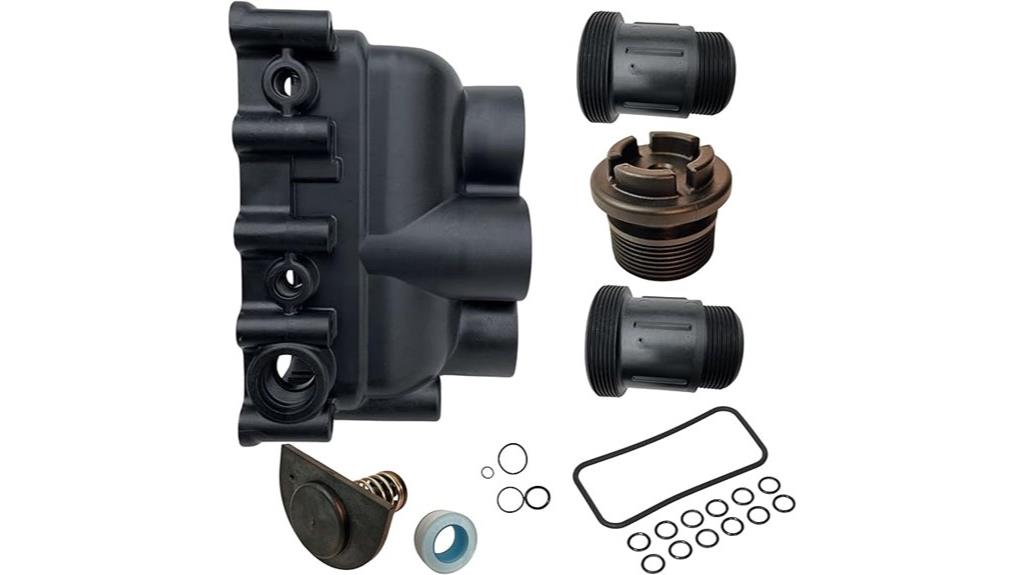

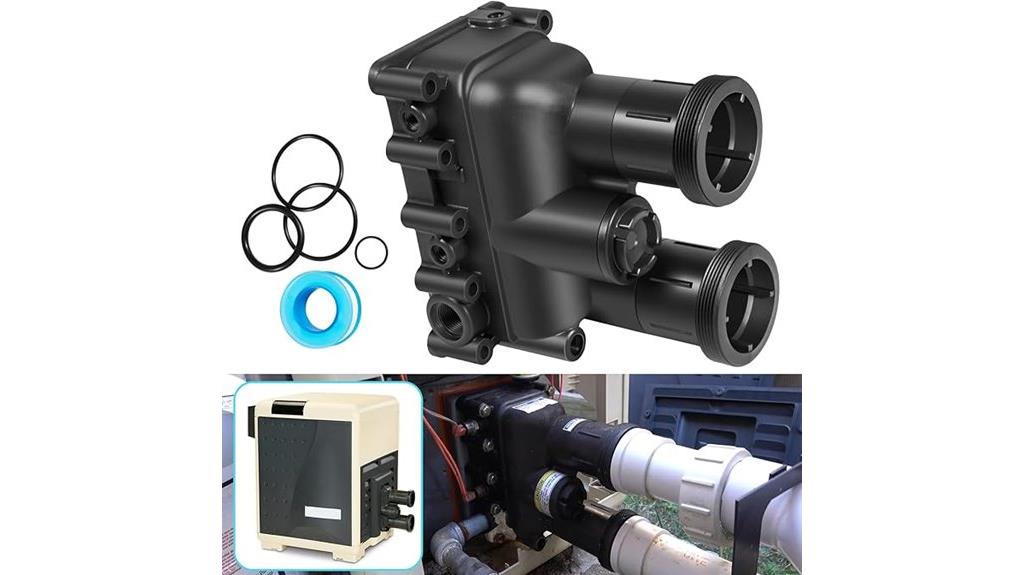

Pool Heater Manifold Parts for MasterTemp 175-400 and Sta-Rite Max-e-Therm
This manifold assembly kit handles a variety of models, including MasterTemp 175-400 and Sta-Rite Max-e-Therm. It provides a practical solution for replacing damaged manifolds, with included O-rings and Teflon tape to facilitate installation. Compared with the Raypak 006731F, which is more specific and safety-focused, this kit emphasizes versatility across brands. Its durable, high-temperature resistant materials make it suitable for frequent use, but reusing old parts might complicate installation for some users.
Pros:- Compatible with multiple heater models
- Includes essential components like O-rings and Teflon tape
- Durable, high-temperature resistant materials
- Helps prevent leaks and restore heater function
Cons:- Installation may require technical skill
- Reusing old parts can lead to improper sealing if not done carefully
Best for: Technicians or experienced homeowners needing a versatile, multi-model replacement kit for common heater brands
Not ideal for: Complete beginners or those with non-compatible models, as installation can be technical and reusing parts may be tricky
- Product Dimensions:8.86 x 5.51 x 5.91 inches
- Item Weight:3.28 pounds
- Material:High-temperature resistant rubber and plastic
- Compatibility:MasterTemp 175-400 and Sta-Rite Max-e-Therm
Our verdict“This kit is best for professionals and seasoned DIYers needing a versatile solution for multiple heater brands.”
Replacement 77707-0120 Heater Manifold O-Ring Kit Compatible with Pentair
The Replacement 77707-0120 O-Ring Kit offers a simple, effective way to seal and maintain Pentair heaters, with a focus on long-lasting, leak-proof performance. Its high-quality silicone material ensures durability, making it a smart choice for routine maintenance. Compared to the Raypak 006731F, which is more structural, this kit addresses sealing issues more directly. Installation is straightforward for those familiar with heater parts, but it’s limited to specific Pentair models, so compatibility must be checked.
Pros:- Easy to install for DIY users
- Made from durable, high-quality silicone
- Provides a reliable, leak-proof seal
- Compatible with multiple Pentair models
Cons:- Limited to specific heater models
- Manual replacement may not suit all users
Best for: Pool owners performing routine maintenance who prefer a DIY-friendly, reliable sealing solution
Not ideal for: Users with incompatible models or those seeking structural replacements rather than just seals
- Brand:Aquatonics
- Model:AQTNS02
- Part Number:AQTNS02
- Item Count:1
- Material:Silicone
- Compatible Models:MasterTemp and Max-E-Therm
Our verdict“This O-ring kit is perfect for those needing a quick, reliable fix to prevent leaks in compatible Pentair heaters.”

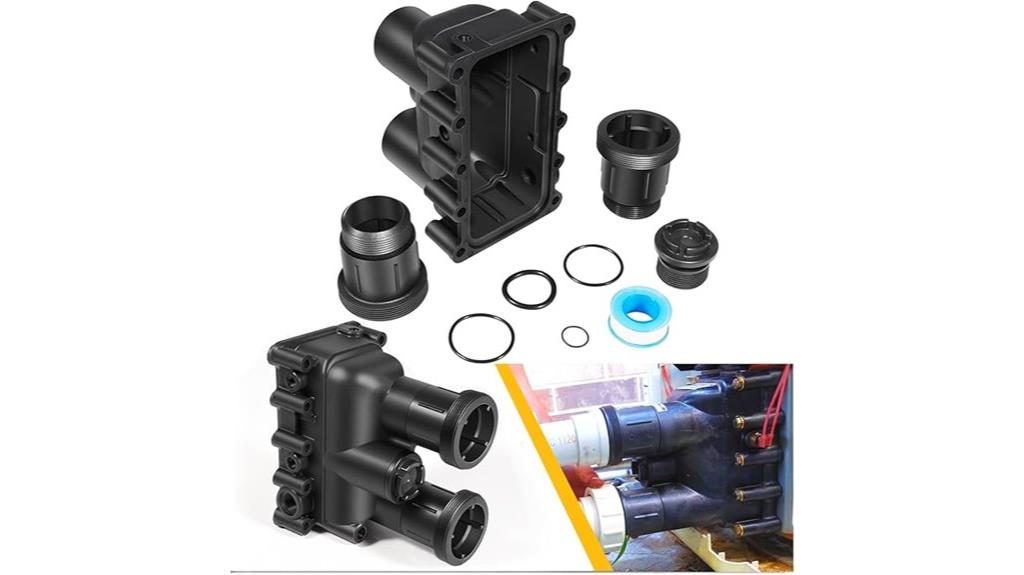

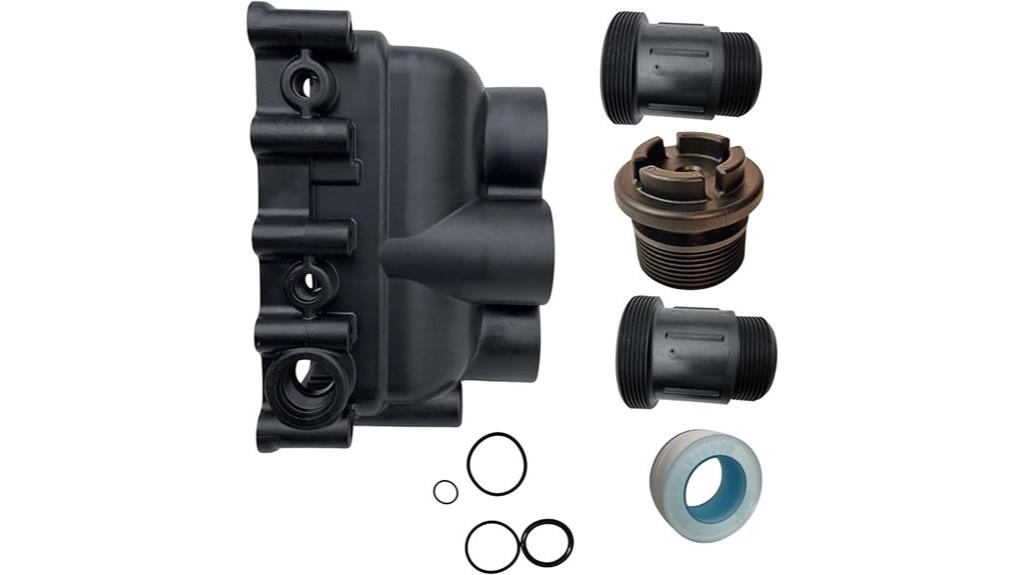

Pool Heater Manifold Assembly Kit for MasterTemp and Sta-Rite Max-E-Therm Heaters, 77707-0205, 77707-0206, 77707-0014, 77707-0015, 77707-0016, Black
This manifold assembly kit stands out for its broad compatibility with various MasterTemp and Sta-Rite Max-E-Therm heaters, offering a durable PTFE construction that resists temperature fluctuations better than some plastic alternatives. Compared with the Raypak 006730F, its inclusion of sealing components simplifies leak prevention, making it a more comprehensive solution. However, its installation demands basic technical skills, and it’s limited to specific heater models. This makes it ideal for pool owners seeking a dependable, long-lasting replacement that fits multiple systems, but less suitable for DIY beginners or those with incompatible heater brands.Pros:- Compatible with multiple heater models, reducing the need for multiple purchases
- Durable PTFE material withstands high temperatures and chemical exposure
- Includes sealing components to prevent leaks and improve longevity
- Easy to install for those familiar with pool equipment
Cons:- Requires some technical knowledge for proper installation
- Limited to specific heater models, reducing versatility for other brands
Best for: Pool owners with MasterTemp or Sta-Rite Max-E-Therm heaters needing a reliable, long-term manifold replacement.
Not ideal for: Buyers with incompatible heater models or limited technical experience who prefer plug-and-play solutions.
- Compatibility:MasterTemp 175-400, Sta-Rite Max-E-Therm SR200, SR333, SR400
- Material:PTFE
- Dimensions:8.85 x 5.5 x 5.9 inches
- Item Weight:2.89 pounds
- Model Numbers:77707-0205, 77707-0206, 77707-0014, 77707-0015, 77707-0016
Our verdict“This kit offers excellent compatibility and durability for experienced pool owners seeking a long-lasting manifold replacement.”
206A – 407A Replacement Return Header with Seal & Flange Nut Kit for Raypak Pool Heaters
This replacement return header kit excels in providing a straightforward fix for Raypak RP2100 series heaters, with a durable polymer construction that resists corrosion better than metal parts prone to rust. Compared to the Raypak 006730F, this kit includes all necessary installation parts, making it easier for DIYers to replace their headers without additional purchases. Still, it’s designed specifically for Raypak models, so compatibility with other brands is limited, and installation requires shutting down water, gas, and power lines. It’s perfect for budget-conscious Raypak users needing a reliable, quick fix, but not ideal for those with different heater brands or seeking a universal solution.Pros:- Compatible with multiple Raypak heater models, simplifying repairs
- Corrosion-resistant polymer construction extends lifespan
- Complete kit with all installation parts included
- Easy to replace with basic mechanical skills
Cons:- Requires shutting down water, gas, and power during installation
- Limited to Raypak heater models, reducing flexibility
Best for: DIY homeowners with Raypak RP2100 series heaters needing an affordable, complete header replacement.
Not ideal for: Users with different heater brands or those wanting a universal, multi-brand header kit.
- Product Dimensions:14.62 x 4.37 x 1.61 inches
- Part Number:206A – 407A, 015095F
- Included Parts:Polymer Return Header, Header O-Ring, Drain Plug, Flange Nuts
- Material:Polymer
- Compatibility:Raypak RP2100 series
Our verdict“This kit offers a reliable, cost-effective solution for Raypak heater owners seeking an easy-to-install header replacement.”

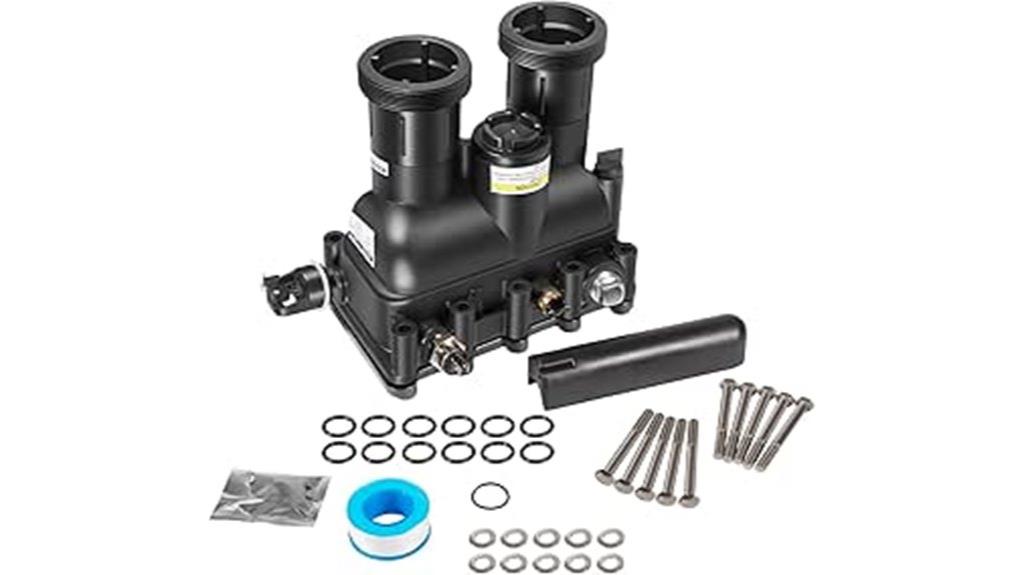

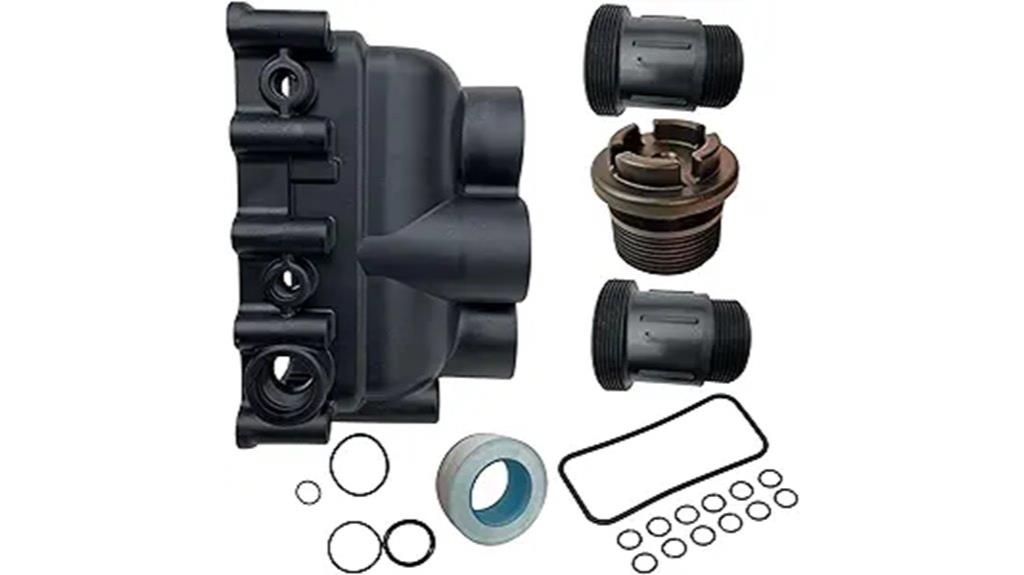

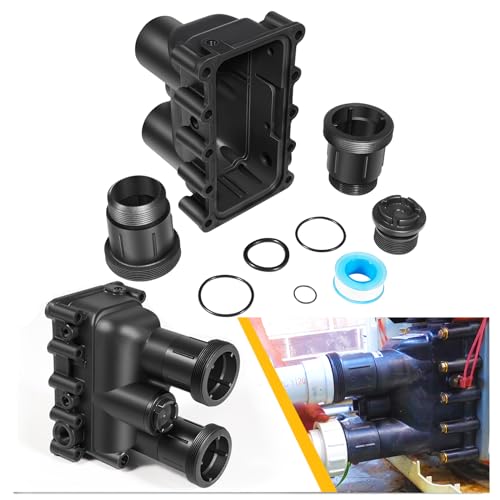

Pool Heater Manifold Assembly Replacement Kit for Pentair MasterTemp and Sta-Rite Max-e-Therm
This replacement kit is tailored for Pentair MasterTemp and Sta-Rite Max-e-Therm heaters, offering a precisely engineered fit that simplifies installation compared to generic parts like the Raypak 006730F. Its inclusion of gaskets, sensors, and bolts ensures a comprehensive replacement experience, but its moderate customer rating suggests some users may face durability or compatibility issues. Compared with the more versatile MasterTemp assemblies, this kit is a strong choice for those seeking OEM-like precision, though it’s less suitable for DIY novices or those with non-listed models.Pros:- Engineered for a precise fit on compatible models
- Includes all necessary parts for a full replacement
- Durable construction supports reliable operation
- Designed for ease of installation with included components
Cons:- Moderate customer ratings indicate potential quality issues
- Limited compatibility to specific heater models
Best for: Pool professionals or experienced homeowners replacing specific Pentair or Sta-Rite systems for a perfect fit.
Not ideal for: First-time DIYers or owners with unlisted heater models who need a more universal solution.
- Product Dimensions:2 x 1.98 x 1.99 inches
- Item Weight:3.32 pounds
- Manufacturer:E-cowlboy
- Model Number:77707-0205
- Included Parts:Gaskets, sensors, bolts
Our verdict“This kit offers a tailored, comprehensive replacement for specific heater models, best suited for experienced users seeking OEM-quality parts.”
Raypack 006730F Inlet/Outlet Header ASME-CI
This header delivers solid performance thanks to high-quality materials and rigorous manufacturing standards, making it a dependable choice for pool systems. Compared with the Raypak 019049F, it offers a straightforward, no-frills component suitable for standard applications, though it provides limited details on long-term durability or specific compatibility. Its compact size makes it ideal for tight spaces, but it may not include all the accessories needed for a full replacement. This product is best for those prioritizing durability and affordability in basic pool setups, but less so for owners seeking a full kit or advanced features.Pros:- High-quality construction ensures durability over time
- Rigorous quality testing guarantees consistent performance
- Compact size easy to fit in tight spaces
- Good value for basic pool and spa systems
Cons:- Limited product details, which may concern some buyers
- Specific use case; may require additional components for full installation
Best for: Pool owners needing a durable, reliable inlet/outlet header for standard applications.
Not ideal for: Those seeking complete installation kits or advanced features like integrated sensors.
- Product Dimensions:1 x 1 x 1 inches
- Item Weight:1 pound
- Manufacturer:SCP Distributors LLC
- Model Number:006730F
Our verdict“This header offers dependable durability for standard pool systems where basic reliability suffices.”
Raypak Avia Complete Inlet and Outlet Header Kit – 019049F
The Raypak Avia Header Kit provides a comprehensive solution with all necessary inlet and outlet parts, making it attractive for those who want everything included in one package. Its design emphasizes ease of installation, which can save time compared to assembling separate components, and it’s compatible with various pool systems. However, its weight of 5 pounds can make handling more cumbersome, and limited information on system compatibility may require buyers to verify fit before purchase. This kit is best for owners who prefer a full, ready-to-install package, but it may be overkill for simple replacements or owners with space constraints.Pros:- All necessary components included for a complete setup
- Designed for straightforward installation process
- Reliable performance for pool and spa systems
- Helps reduce installation time and complexity
Cons:- Heavy at 5 pounds, which may complicate handling
- Limited details on system compatibility, requiring verification
Best for: Pool technicians or DIYers wanting a full, ready-to-install header kit for pool or spa systems.
Not ideal for: Owners with space limitations or who prefer lightweight, minimal components that don’t include all parts.
- Product Dimensions:12 x 12 x 7 inches
- Item Weight:5 pounds
- Item Model Number:019049F
Our verdict“This header kit offers a full, easy-to-install solution perfect for professionals or DIYers who want a hassle-free setup.”
sixcow 77707-0016 Manifold Replacement Kit for Pool and Spa Heater
This kit stands out for its compatibility with several Pentair Max-E-Therm and Mastertemp models, making it a reliable choice for routine maintenance. Compared to the E-cowlboy kit, it offers straightforward installation, but it’s limited to specific heater models, which might restrict versatility. Its durable construction promises longevity, yet the lack of detailed warranty info could be a concern for some buyers. For those with compatible Pentair systems seeking a simple replacement, this kit provides a dependable solution without the need for complex modifications.Pros:- Compatible with multiple Pentair heater models
- Easy to install and replace
- Durable and reliable construction
Cons:- Limited to specific heater models
- No detailed warranty information provided
Best for: Pool owners with Pentair Max-E-Therm or Mastertemp heaters who want an easy, reliable replacement kit.
Not ideal for: Buyers with non-Pentair systems or those looking for a universal manifold solution, as this kit is model-specific.
- Product Dimensions:9 x 9 x 6 inches
- Item Weight:6.14 pounds
- Model Number:77707-0016
Our verdict“This kit is ideal for Pentair users needing a straightforward, durable replacement, but not suitable for universal applications.”
Raypak 002451F Return Header Kit for 183-403 Bronze
This brass return header is designed for Raypak models 183 and 403, offering a sturdy, corrosion-resistant connection that ensures consistent water flow. Compared to the Raypak 011595F inlet/outlet header, it’s heavier but offers similar durability, making it suitable for long-term use. Its small size makes installation straightforward, but its limited compatibility restricts broader application. This header works best for Raypak owners with these specific models who prioritize longevity and resistance to corrosion.Pros:- Heavy-duty brass construction for longevity
- Easy to install with standard fittings
- Designed specifically for Raypak models 183 and 403
Cons:- Limited to specific models (183 and 403)
- Heavy for its size at 5 pounds
Best for: Owners of Raypak heaters in models 183 and 403 requiring a durable, brass return header.
Not ideal for: Consumers with different Raypak models or other brands, as it’s not universally compatible and may not fit other systems.
- Product Dimensions:1 x 1 x 1 inches
- Item Weight:5 pounds
- Manufacturer:Raypak
- Model Number:002451F
Our verdict“Perfect for Raypak owners needing a durable, model-specific return header, but not suitable for other brands or models.”
E-cowlboy Manifold Replacement Kit for Pool and Spa Heaters
This kit excels by including valves, switches, and thermistors compatible with several Pentair MasterTemp and Sta-Rite Max-E-Therm models, offering a comprehensive solution for heater repairs. Unlike the sixcow kit, which is more limited in scope, this set provides all essential parts in one package, simplifying maintenance. Its heat-resistant, durable materials enhance longevity, yet it’s restricted to specific models, which could be limiting for some users. It’s an excellent choice for pool owners seeking a full, reliable replacement for multiple heater types.Pros:- Includes all essential replacement parts
- Compatible with multiple popular models
- Constructed with heat-resistant, durable materials
Cons:- Limited to specific heater models
- No detailed durability reviews available
Best for: Pool technicians or owners needing a full replacement kit for Pentair or Sta-Rite heaters with multiple parts included.
Not ideal for: Homeowners with non-compatible models or those seeking a single, simple manifold without additional components.
- Product Dimensions:2 x 1.98 x 1.99 inches
- Item Weight:6.05 pounds
- Model Number:77707-0016
- Compatible Models:Pentair MasterTemp 460736, 460737, 460805; Sta-Rite Max-E-Therm SR400NA, SR400HD, SR400LP
Our verdict“Ideal for comprehensive repairs on compatible Pentair and Sta-Rite heaters, but not for universal or one-part fixes.”
Raypak 011595F Inlet and Outlet Header
This inlet/outlet header offers a compact, durable connection point for Raypak pool and spa systems, weighing 5 pounds and measuring nearly 8.7 inches in length. Compared to the Raypak 002451F return header, it provides a more versatile inlet/outlet solution, but its specific fit limits broader use. Installation is straightforward, yet the lack of detailed compatibility info can be a drawback for those with less common systems. It’s best suited for Raypak owners seeking a reliable replacement for their inlet/outlet connections within compatible models.Pros:- Durable construction for long-term use
- Easy to install replacement
- Compact size fits various setups
Cons:- Limited info on broader model compatibility
- Specific to Raypak systems, not universal
Best for: Raypak pool and spa owners needing a replacement inlet/outlet header for specific models.
Not ideal for: Buyers with non-Raypak systems or those seeking a universal header, as this part is tailored to specific Raypak configurations.
- Product Dimensions:8.7 x 6.9 x 6.7 inches
- Item Weight:5 pounds
- Model Number:011595F
Our verdict“Best for Raypak users replacing inlet/outlet headers on compatible systems, but not suitable for other brands.”
Raypack 006707F Return Header with Gaskets
This high-quality return header features durable materials and is tested for reliability, making it a dependable choice for replacement in pool systems. Compared with other Raypak headers like 002451F, this model emphasizes gasket inclusion for an airtight seal, which is key for preventing leaks. Its small size and straightforward installation make it appealing, but limited product details and the absence of broad compatibility information might make it less versatile for some buyers. It’s well-suited for those prioritizing quality and gasket integrity in their replacements.Pros:- Made from high-quality, durable materials
- Includes gaskets for a tight seal
- Rigorous quality testing for reliability
Cons:- Limited product details
- Specific compatibility info not provided
Best for: Pool owners seeking a durable, gasket-inclusive replacement part for Raypak systems.
Not ideal for: Buyers needing a universal or detailed product description, or those with non-Raypak systems, as this is specialized for certain applications.
- Product Dimensions:1 x 1 x 1 inches
- Item Weight:1 pound
- Model Number:006707F
Our verdict“A strong choice for Raypak owners focused on high quality and gasket sealing, but not ideal for universal use.”
How We Picked
Products were evaluated based on their build quality, compatibility, pressure ratings, ease of installation, and overall value. We prioritized headers made from durable materials like cast iron or high-grade plastics, especially those with ASME certification for high-pressure systems. Compatibility with popular heater brands such as Raypak, Pentair, and Zodiac was a key factor, along with user-friendly replacement kits. Our rankings reflect the balance between performance and cost, aiming to recommend options suitable for both DIYers and professional installers. The top picks excel in durability and fit, while others fill specific niches like budget-friendly replacements or specialized configurations.Factors to Consider When Choosing Pool Heater Manifolds Headers
Choosing the right pool heater header involves more than just matching part numbers. It’s essential to consider the pressure rating, material durability, and compatibility with your existing system. A header that isn’t rated for your system’s pressure could lead to leaks or failures, while poor material choices may result in corrosion over time. Understanding these factors can save you money and prevent headaches down the line. Here are the key considerations to keep in mind when selecting a header for your pool heater.Pressure Rating and Material Durability
Headers are subjected to varying pressure levels depending on your pool system’s specifications. Always check if the header is rated for your system’s maximum PSI, especially for commercial or high-capacity installations. Materials like cast iron or high-grade plastics like PVC or CPVC offer different strengths; cast iron headers tend to be more durable and pressure-resistant but are heavier and less flexible. In contrast, plastic headers are lighter and easier to install but may have lower pressure ratings. Matching the material and pressure rating to your system is key for longevity and safety.
Compatibility with Your Heater Model
Not all headers fit every heater brand or model, which makes verifying compatibility vital. Many manufacturers produce replacement headers tailored for specific models, such as Raypak, Pentair, or Zodiac. Using a compatible header ensures proper sealing, flow rate, and ease of installation. Investing in a model-specific header might cost a bit more initially but prevents issues like leaks or poor fit that could cause long-term damage or inefficient operation. Always double-check your heater’s specifications before purchasing.
Ease of Installation and Replacement
A header that’s straightforward to install can save hours of work and reduce installation errors. Kits that include gaskets, flange nuts, and detailed instructions are advantageous, especially for DIYers. Consider whether the header design allows for easy access and replacement without extensive disassembly. Some headers feature quick-connect fittings or modular components, which can significantly simplify ongoing maintenance or future upgrades. Prioritize options that offer clear compatibility with your existing setup for a smooth upgrade process.
Cost vs. Long-Term Value
While budget headers might seem appealing initially, they often compromise on pressure ratings or material quality, leading to costly repairs or replacements later. Investing in a higher-quality, rated header may cost more upfront but provides better durability, fewer leaks, and longer service life. Consider your system’s demands and your willingness to pay for peace of mind. Sometimes, opting for a slightly more expensive, well-rated header can be more economical over time than repeatedly replacing cheaper alternatives.
Common Mistakes to Avoid
One common error is purchasing a header that looks similar but isn’t compatible with your heater model. Overlooking pressure ratings can lead to system failure under high pressure. Additionally, ignoring material compatibility with pool chemicals can result in corrosion or deterioration. Rushing installation without verifying part fit or failing to replace associated gaskets and seals can cause leaks. Taking time to verify specifications and instructions helps prevent these costly issues.
Frequently Asked Questions
How do I know if a pool heater header is compatible with my system?
Compatibility depends on matching the header’s dimensions, connection type, and pressure rating with your heater model. Start by checking the manufacturer’s specifications and part number recommendations for your heater. Many brands produce specific headers for different models, so cross-referencing your heater’s make and model ensures a proper fit. If in doubt, consulting the heater’s manual or contacting the manufacturer can prevent mismatched parts and installation issues.
Are high-pressure rated headers necessary for residential pools?
Most residential pools operate at relatively low pressures, so standard headers often suffice. However, if your system has a high-capacity heater or if you run your pump at higher pressures, opting for an ASME-certified, high-pressure header can improve safety and durability. Using the correct pressure-rated header reduces the risk of leaks or failures under stress. Always verify your system’s maximum pressure to determine if a high-pressure header is warranted.
Can I replace my pool heater header myself, or should I hire a professional?
Replacing a header can be straightforward for those with some plumbing experience, especially if you have the right tools and replacement kit. Many headers are designed for easy installation with compatible fittings and seals. However, if your system involves high-pressure lines or complex plumbing, or if you’re unsure about the process, hiring a professional ensures proper installation and safety. Proper sealing and correct torque are vital to prevent leaks, so consider your comfort level and the complexity of your system.
What are the signs that my pool heater header needs replacing?
Leaks around the header, decreased heating efficiency, or unusual noises can indicate a failing header. Corrosion or cracks visible on the header itself are clear signs it’s compromised. If your system’s pressure drops unexpectedly or if you notice water pooling near the heater, it might be time to replace the header. Regular inspections can catch issues early, preventing more extensive damage to your heater or plumbing system.
Is it worth upgrading to a more expensive header?
Upgrading to a higher-quality, pressure-rated header makes sense if your system operates under heavy use or high pressures. A more durable material like cast iron or a certified ASME header can withstand harsh conditions longer, reducing downtime and repair costs. For casual or standard residential pools, a mid-range plastic or non-rated header might suffice. Ultimately, consider your system’s demands and whether investing in a premium part offers peace of mind and longer service life.
Conclusion
For most residential pool owners, the Raypak 006731F Return Header provides a reliable, durable solution with high-pressure capabilities. Those seeking the best value might opt for budget-friendly replacements like the E-cowlboy Manifold Kit, which offers compatibility and ease of installation at a lower cost. If you have a high-capacity or commercial system, investing in an ASME-certified header ensures safety and longevity. Beginners should prioritize headers with comprehensive kits and clear instructions, while professionals may opt for heavy-duty, high-pressure rated options. Consider your pool’s size, system pressure, and budget to choose the best header for your needs.
As an affiliate, we earn on qualifying purchases.Flea & tick season Picks
flea and tick prevention
